Sharp LCD TV

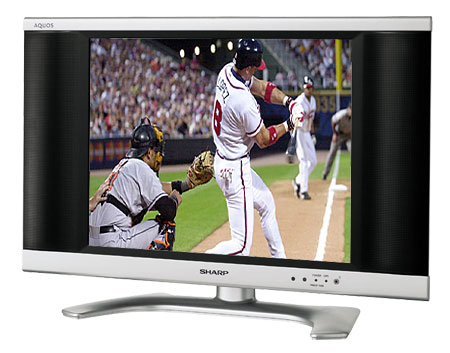

Sharp LC-20B8U-S 20" LCD Display
Model: Sharp LC-20B8U-S
See all Online Prices
The Sharp LC-20B8U-S LCD TV is features the most advanced video processing available for superb picture quality. The LC-20B8U-S employs Sharp’s Advanced Super View TFT LCD Panel, which provides high brightness, a 500:1 contrast ratio, and wide viewing angles with an HDTV-ready 1024 x 768 resolution. With a separate ATSC tuner (not included), the LC-20B8U-S can receive HDTV signals including 720p and 1080i. An included PC input adds more versatility, allowing you to use this Sharp AQUOS LCD TV as a computer monitor.
Sharp LCD Specifications
Screen Size 20" diagonal Screen Aspect 4:3 Contrast Ratio 500:1 Brightness 480cd/m2 Pixel Pitch [not published] hSync [not published] vSync [not published] Color System [not published] Data Signals VGA, SVGA, XGA TV Scan Lines 480i, 480p, 720p, 1080i
Input Terminals
Composite Video 2 (RCA) S-Video 1 (4-pin mini DIN) Component Video 2 (RCA x 3) VGA RGB Signal 1 (15-pin mini d-Sub) Stereo Audio In 4 (RCA L/R)
Output Terminals
Composite Video 1 (RCA) Stereo Audio 1 (RCA L/R)
LCD TV Accessories
Audio Amplifier 2.1W x 2 Speakers Built In Speakers Mounting Options Table Stand Included
Dimensions and General Specs.
Power Supply 100-120V, 200-240V @ 50-60Hz Power Consumption [not published] Dimensions 25.125" x 17.44" x 9.53" (w/stand) Weight 26.70 lbs. FCC Class FCC Class B, Home Use
Key Features of the Sharp LC-20B8U-S 20" LCD TV Monitor
- Crystal Clear 1280 x 720 XGA high resolution LCD TV panel
- Advanced Super View TFT LCD Panel with 480 cd/m2 brightness, 500:1 Contrast
- Optical Picture Control (OPC) automatically adjusts the screen to match room lighting
- Quick Shoot Technology provides clean and clear reproduction of high-speed moving images
- Component Video Inputs can receive 1080i or 720p HDTV broadcasts
- Advanced I-to-P conversion and 3:2 pull-down
- PC-compatible with D-sub 15 pin VGA input
Sharp LC-20B8U-S LCD TV
The Sharp LC-20B8U-S LCD TV features XGA resolution of 1024 x 768, a PC input, and Sharp's proprietary Black TFT/Advanced Super View panel, so TV shows and DVD movies seem to pop off the screen. Using Sharp's Emmy Award-winning LCD technology, the brightness rating for the LC-20B8U-S is a dazzling 450 cd/m2. This sleek new TV accepts 480i and 480p EDTV signals as well as 720p and 1080i HDTV (HDTV tuner not included).
Sharp LCD Display Technology
Sharp Advanced Super View LCD Panel
Low-reflection Black TFT coating effectively reduces the glare of ambient light CRT and Plasma TVs may experience screen glare from indoor lighting and sunlight. Sharp LCD TV screens effectively reduce reflection to provide vivid large-screen pictures. No need to worry about television placement. Enjoy high-quality pictures even in a room exposed to the sun.New Color Filter for More Vivid Color
Color filter enhancements deliver blacker blacks and redder reds Improved bandwidth and dynamic range deliver deeper blacks, richer, redder reds and more authentic color value detail across the spectrum. Sharp LCD technology continues to raise the bar on “grayscale” performance – the ability to reproduce black on-screen – through improved gamma control for a greater number of black levels. These enhancements, combined with optimal color temperature settings, allow consumers to easily adjust the monitor for peak performance with varying source content.Sharp Quick Shoot Technology provides clean and clear reproduction of high-speed moving images with an industry-standard response time less than 12ms.
Convenience Features
Long Lamp Life
LCD television displays use a backlight lamp to illuminate the TV image. The advanced Sharp AQUOS backlight system has an exceptional expected life cycle of 60,000 hours, which means you could watch TV for 5 hours a day for more than 30 years!Wide Viewing Angle
Advances in Sharp’s LCD panel technology yield distortion-free images viewable from anywhere in the room. 170-degree viewing angles, both horizontal and vertical, are among the best of any flat-panel TV design.Adjustable Brightness
Sharp LCD TVs feature an adjustable backlight, with "Normal," "Bright," and "Dark" settings, allowing you to get the perfect picture for any room. The Auto Brightness setting will automatically adjust set brightness for ambient lighting conditions, saving energy while delivering a picture-perfect video image.V-Chip Parental Control
This feature allows you to limit access based on the V-Chip Parental Guidelines and MPAA ratings. After setting Parental Control "On", you must enter the 4-digit password to view blocked programming.Terminals and Connections
Component Video Input (Y/Pb/Pr)
The component video input can accept either progressive-scan (480p) or interlaced-scan (480i) video signals.
