Samsung LCD TV

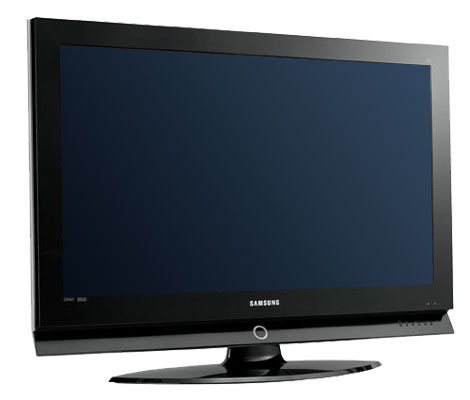

Samsung LN-S4692D 46" LCD Display


  • Check Samsung LCD TV Prices using our Recommended Reseller Finder
  • See all Samsung LCD Televisions

    The new Samsung 46" LN-S4692D LCD TV enhances any room with a startlingly realistic picture when it's on—and slim, elegant style when it's off. A 5000:1 dynamic contrast ratio and over one million pixels sharpen every picture; the Samsung LCD Cold Cathode Fluorescent Lamp saturates it with the brilliance of 12.8 billion colors. Audio is equally impressive, with the full sound of Dual Acoustic Chamber System and SRS TruSurround XT emanating from hidden bottom speakers. Perfect for the living room, den or great room, the wide, 178° viewing angle and convenient swivel stand let everyone enjoy the show. And the new, optimized game mode and ultra-fast 8ms response time take Xbox games to a new height of realism. Adding to its versatility, numerous digital devices, including digital satellite/cable boxes, HD DVD up convertors and more, can be added via two HDMI connections and side A/V inputs.

    Samsung LCD TV


    Samsung LCD Specifications
    Screen Size 46" diagonal
    Screen Aspect 16:9
    Contrast Ratio 5000:1
    Brightness [not published]
    Pixel Pitch [not published]
    hSync [not published]
    vSync [not published]
    Color System [not published]
    Data Signals VGA, SVGA, XGA
    TV Scan Lines 480i, 480p, 720p, 1080i, 1080p

    Input Terminals
    Composite Video 2 (RCA)
    S-Video 2 (4-pin mini DIN)
    Component Video 1 (RCA x 3)
    VGA RGB Signal 1 (15-pin mini d-Sub)
    HDMI Interface 2
    Stereo Audio In 2 (RCA L/R)
    PC Audio In 1 (mini stereo plug)

    Output Terminals
    Stereo Audio 1 (RCA L/R)
    Digital Audio 1 (OPTI)

    LCD TV Accessories
    Audio Amplifier 10W x 2
    Speakers Built In Speakers
    Mounting Options Table Stand Included

    Dimensions and General Specs.
    Power Supply 100-120V @ 50-60Hz
    Power Consumption [not published]
    Dimensions 44.3" x 29.6" x 5.5"
    Dimensions w/ Stand 44.3" x 32.2" x 14.2"
    Weight 81.60 lbs.
    FCC Class FCC Class B, Home Use


    Key Features of the Samsung LN-S4692D 46" LCD TV Monitor

    Samsung LCD Display Technology

    1366 x 768 HDTV Native Resolution High resolution pixel density with built-in image scaler to handle inputs from a variety of digital and analog audio/video sources. HDMI input accepts 1080i and 1080p signals, scaled down to match the 1366 x 768 native resolution.

    5000:1 Dynamic Contrast Ratio Samsung’s S-PVA screen enables brighter whites, deeper blacks and every shade in between. It’s higher contrast ratio provides an abundant palette of perfect colors.

    178º(H) / 178º(V) Viewing Angles Improves viewing angle, contrast, and brightness to provide an even better picture.

    DNIe: The Samsung Digital Natural Image Engine This exclusive technology dramatically improves the picture by enhancing the contrast, detail, white balance and reduces noise.

    CCFL–Cold Cathode Fluorescent Lamp With 92% NTSC color gamut, the Samsung CCFL backlight provides colors in your picture that were not available before in an LCD television

    10-Bit Processor with 12.8 Billion Colors For exceptional color accuracy and subtle, detailed shading.

    Game Mode Enhances dark areas, sharpens the picture, speeds up the image processing response and enhances the sounds of your games. Picture and sound quality optimized for the special needs of gaming systems at the touch of a button.

    Progressive Scan eliminates the flicker that you see on traditional, interlaced scanning TVs.

    Still Picture Response Time: 8 ms response time minimizes blurring of moving video.

    Convenience Features

    Built-in Digital ATSC Tuner Receives over-the-air (terrestrial) HDTV signals.

    Picture-in-picture (PIP) enables convenient simultaneous viewing of TV programs and video or PC sources.

    Clock on/off Timer: Perfect solution to wake up to your favorite morning show, or set a time to turn off the TV so it doesn’t stay on all night. Can also be used when you’re out.

    V-Chip System allows blocking of rated TV and movie programs determined by the parent to contain objectionable content.

    Auto channel search

    Multi-lingual On-screen Displays in English, Spanish or French.

    Variable sleep timer to turn the TV off in varying time intervals.

    Swivel Tabletop Stand provides +/-15° of control to allow everyone in the room to watch TV without moving it.

    Removable stand and VESA compatible hole mounts: If you want to install your TV on your wall, you can easily remove the stand and use a VESA compatible wall mount to safely and stylishly attach your TV to the wall.

    HDMI Digital Interface allows for the transmission of both video and audio digital signals through a single connection for higher quality and fewer wires.

    Audio System Features

    MTS Stereo Broadcast Reception

    SRS TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through the two-speaker internal playback system.

    Auto Volume Leveler keeps audio volume consistent during channel changing.
